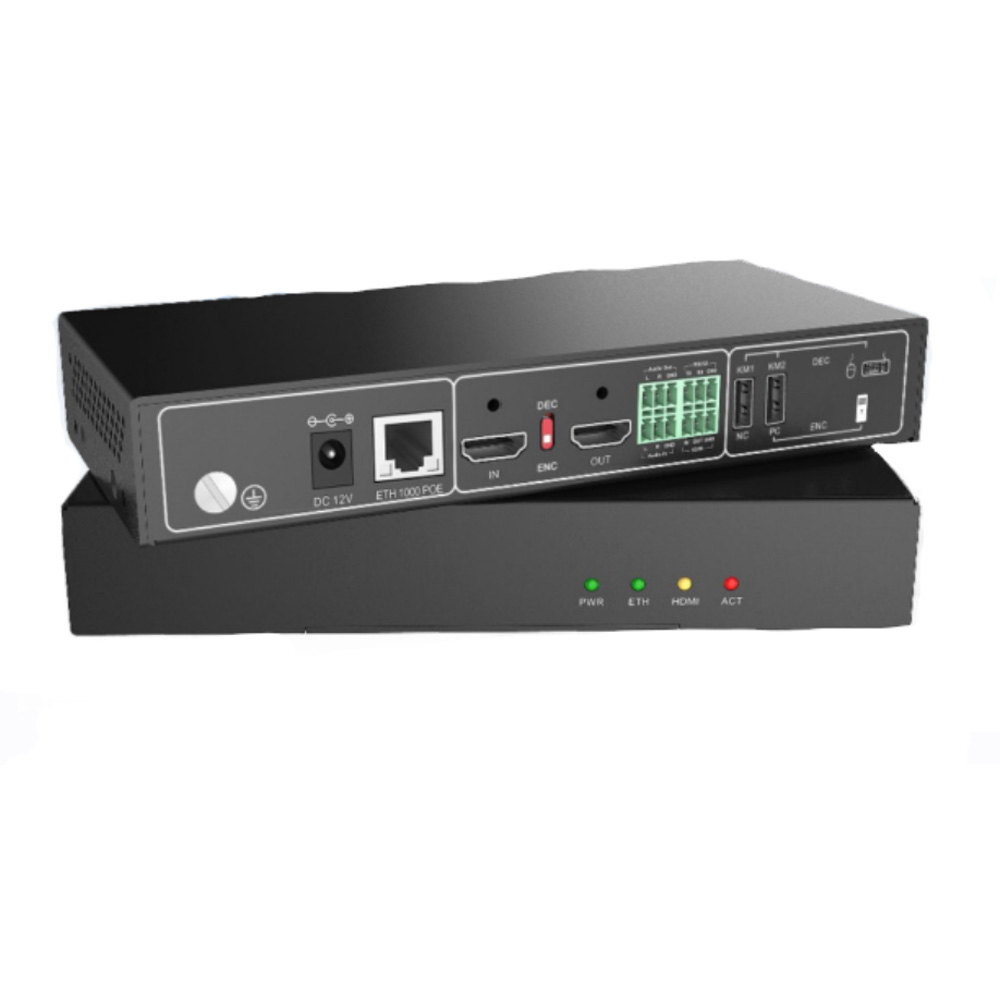

VWX-UHD-IP-IO

VWX-UHD-IP-IO

This 4K version extender supports stable 4K\@30Hz transmission with built-in USB 2.0 KVM and ultra-low latency. It features H.265 compression, EDID management, OSD, vertical screen display, and full support for third-party control via RS232/RS485/IR/IO/UDP. Ideal for LED displays, with 1G fiber and RJ45 backup connectivity.

Categories: , Brand:

Description

4K version:Built-in KVM, support USB2.0, millisecond level delay.
Maximum support 4K@30Hz input and output stable transmission.
LED Support Directly.
H.265 to improve compression efficiency
Protocol support: RTSP / TCP / UDP
EDID Management
OSD (On Screen Display).
1G Optical fiber port and Ethernet Rj45 backup
RS232/RS485/IR/IO/UDP extension and support all third party controller.
Vertical screen display mode
Edge compensation and signal clipping

Built-in KVM, support USB2.0, millisecond level delay.
Maximum support 4K@30Hz input and output stable transmission.
LED Support Directly.
H.265 to improve compression efficiency
Protocol support: RTSP / TCP / UDP
EDID Management
OSD (On Screen Display).
1G Optical fiber port and Ethernet Rj45 backup
RS232/RS485/IR/IO/UDP extension and support all third party controller.
Vertical screen display mode
Edge compensation and signal clipping

  • TX MODEL
  • INTERFACE
  • Video: 1 x Type-A HDMI input (Audio embedded), 1 x Type-A HDMI Loop output (Audio embedded)
  • Audio: 1 x 3PIN Phoenix input
  • Communication: RS232, RS485, IO/IR, Relay
  • Network: 1G Ethernet interface (POE) / 1 x Fiber
  • Power: 1 x DC 12V 2A
  • USB: 2 x USB2.0 (Connect to PC)
  • PARAMETER
  • Resolution: Support up to 3840 x 2160@30Hz
  • Protocol: RTSP / UDP / TCP
  • Video Format: H.264 / H.265
  • Audio Format: AAC / G711A
  • Color: 8bit
  • ENVIRONMENT
  • Power: DC 12V 2A
  • Power supply: <15W
  • Temperature range: 0-50℃ (Working)
  • Working humidity: 10%~90%
  • Size: 180mm × 130mm × 30mm
  • Weight: 0.713KG
  • RX MODEL
  • INTERFACE
  • Video: 1 x Type-A HDMI output (Audio embedded)
  • Audio: 1 x 3PIN Phoenix output
  • Communication: RS232, RS485, IO/IR, Relay
  • Network: 1G Ethernet interface (POE) / 1 x Fiber
  • Power: 1 x DC 12V 2A
  • USB: 2 x USB2.0 (Connect to Keyboard and Mouse)
  • PARAMETER
  • Resolution: Support up to 3840 x 2160@30Hz
  • Protocol: RTSP / UDP / TCP
  • Video Format: H.264 / H.265
  • Audio Format: AAC / G711A
  • Color: 8bit
  • ENVIRONMENT
  • Power: DC 12V 2A
  • Power supply: <15W
  • Temperature range: 0~50℃ (Working)
  • Working humidity: 10%~90%
  • Size: 180mm × 130mm × 30mm
  • Weight: 0.713KG

.
