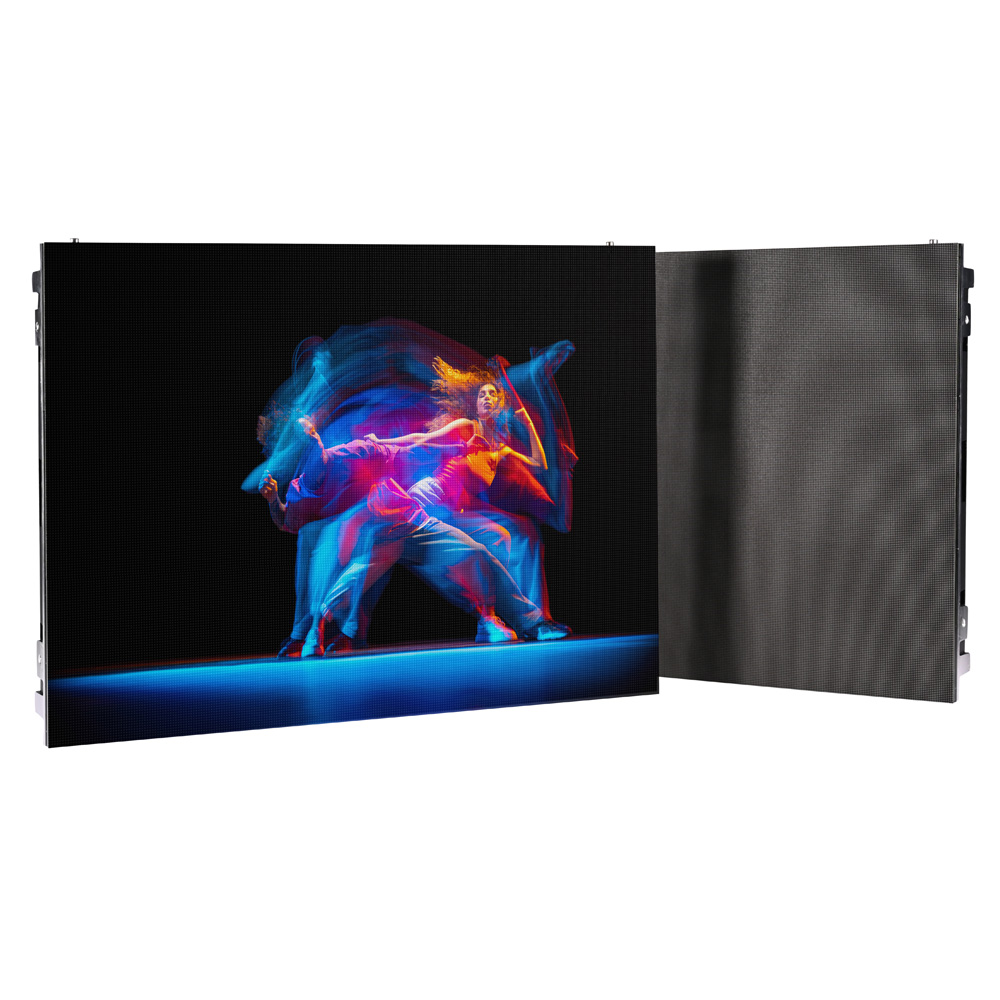

VWX-NPP200

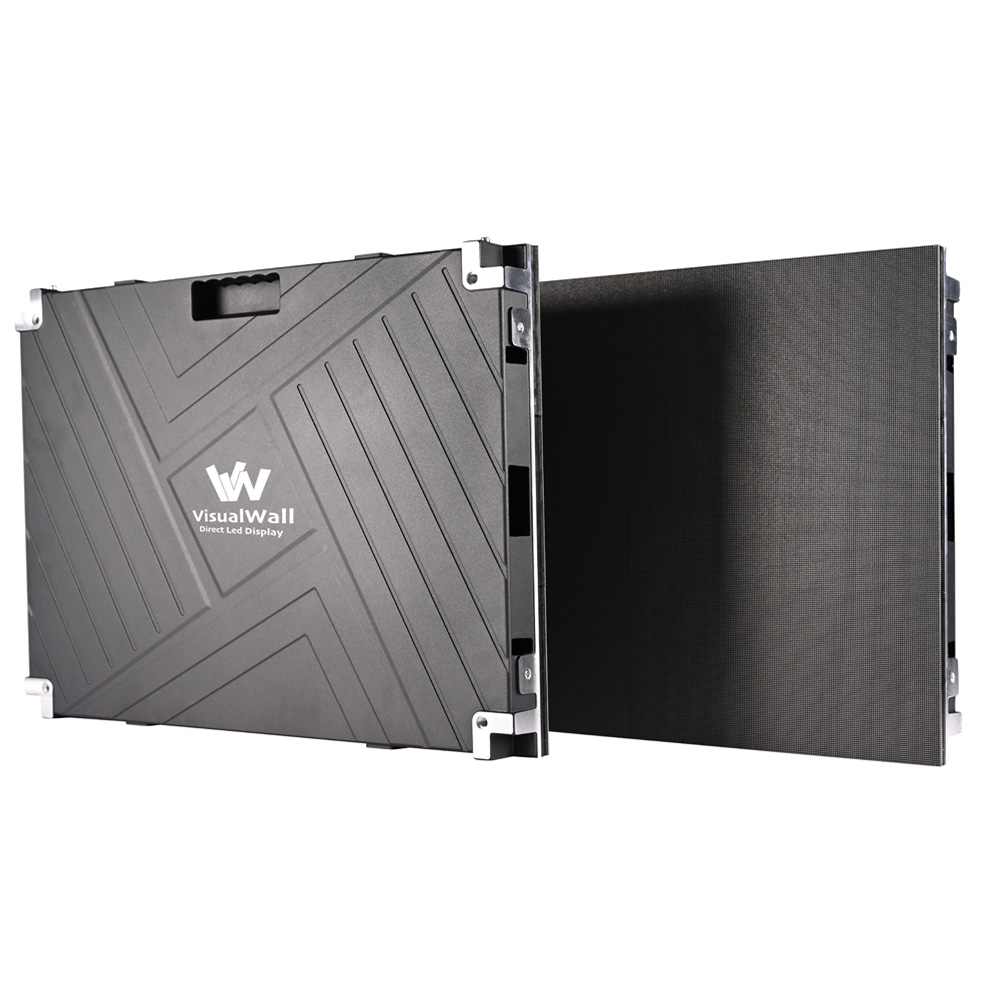

VWX-NPP200 - Image 2

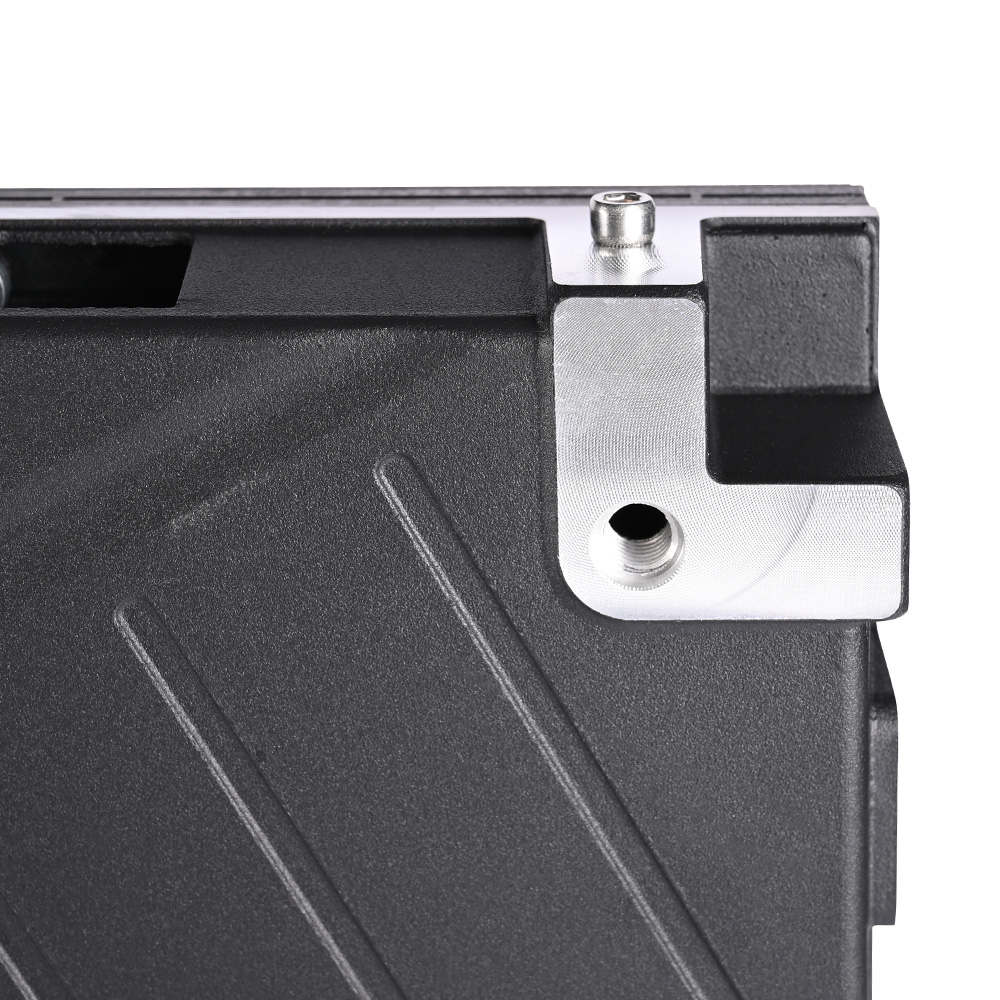

VWX-NPP200 - Image 3

VWX-NPP200

The P2.0 LED module delivers a 160×80 resolution with a high refresh rate of 3840Hz and excellent brightness/color uniformity above 95%. Designed for front maintenance, it features a 5000:1 contrast ratio and wide 160°/140° viewing angles. With a durable structure and over 100,000 hours of lifespan, it ensures reliable and vibrant performance.

Categories: , Brand:

Description

Module Parameter
Pixel Pitch(mm) :2.0
LED : SMD1515
Module Resolution(W*H) :160*80
Module Size(W*H*D,mm) :320*160*15
Density(dot/㎡) :250,000
Flatness(mm) :≤1
Maintenance: Front
Material :Plastic Bottom Shell

Optical Parameter
Single-dot brightness calibration :Available
Single-dot colorcalibration :Available
Brightness(cd/㎡) :≥450
Color Temp(K) : 3200-9300 Adjustable
Viewing Angle(H/V,°) :160/140
Emitting point center distance deviation: <3%
Brightness/Coloruniformity: ≥95%
Contrast Ratio =5000:1

Electrical Parameter
Max Power Consumption(W/㎡) :400
Avg Power Consumption(W/㎡) :136
Power Supply :110-220VAC±15%

Processing Parameter
Driver Mode :Constant Current
Scan Rate :40
Frame Rate(Hz) :60
Refresh Rate(Hz) :3840
Color Depth(bits) :12~14

Operating Parameter
Receiving Card :HUB75
Lifespan (hr) : ≥100000
Operating Temp(℃) : -10~40
Storage Temp(℃): 0~30
Operating Humidity(%RH) :10%~65%
Storage Humidity(%RH) :10%~60%

  • Highportability: lightweight and easy to install and disassemble.
  • Highrefresh rate: 3840Hzrefresh enables betterdisplay effect.
  • Higherresolutiondelivers a moredetailed display effect.
  • Magneticdesign allows for front installation and maintenance.
  • Adopts constant current drive LED for even light emitting and lower powerconsumption.

.

.
