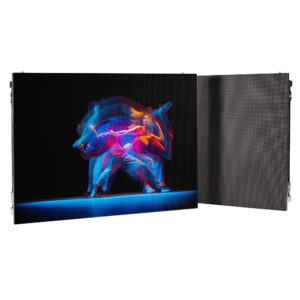

The integrated design combines HUB board, power supply, and control card in a compact, wireless structure for easy installation and disassembly. Thermal conductive silicone enhances heat dissipation between the unit and the housing. The 3.8V energy-saving power supply reduces energy consumption by 24% compared to traditional 5V systems.
Pixel pitch: 1.56
Module size: 300*168.75mm
Resolution: 192*108
Scanning method:1/54
Surface hardness:4H
Surface process: matte
Cabinet size:600*337.5*35.5mm
Cabinet weight : About 4KG
Cabinet resolution: 384*216
Pixel density: 409600
Circuit scheme: Common anode circuit
Flash correction storage: Support
Control system: Novastar three-in-one
White balance brightness: standard 600nit
Refresh rate: 3840Hz
Contrast ratio: 10000:1
Color temperature: 9300K
Viewing angle: 160°
Input voltage:AC100~240V 50/60Hz
Maximum power: 70W
Installation/maintenance method: Front and rear installation/front maintenance
IP protection level: IP54（Surface can be cleaned with water）
Operating temperature range: -10°C~+60°C
.
.
