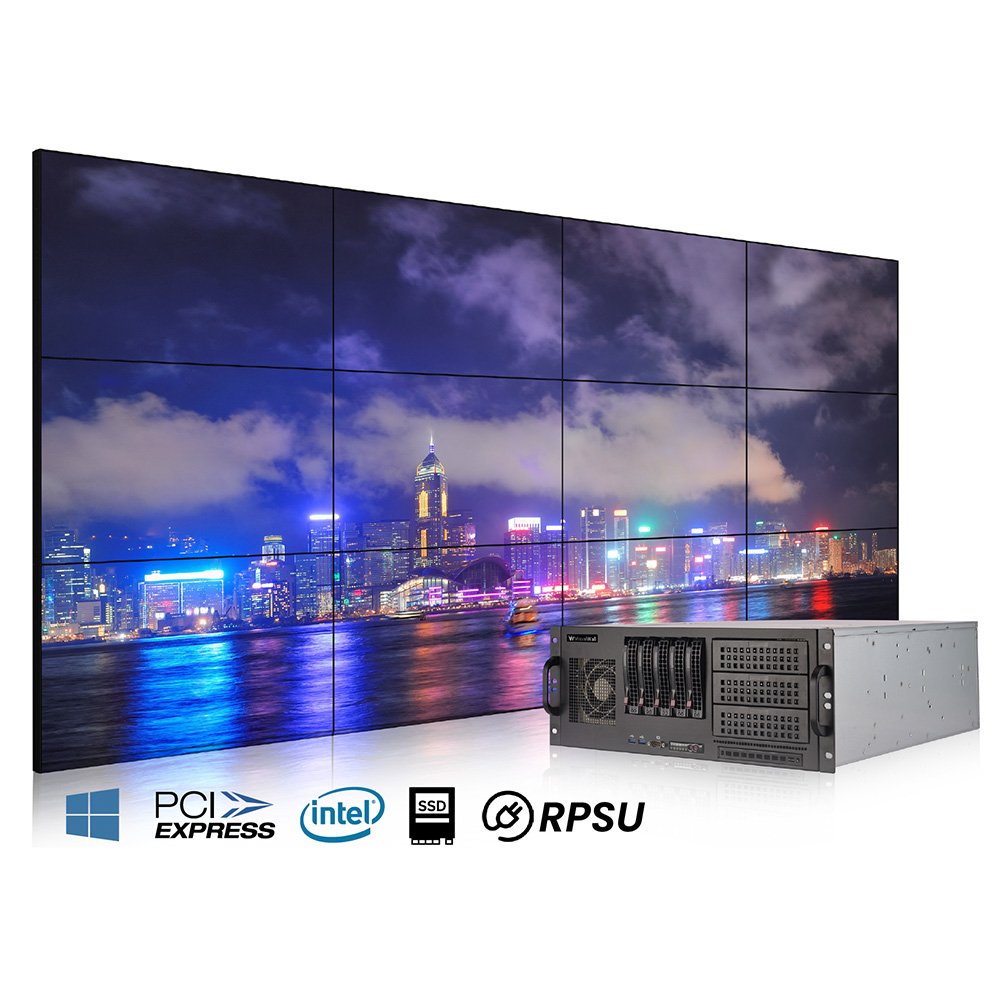

VW7X-RPSU

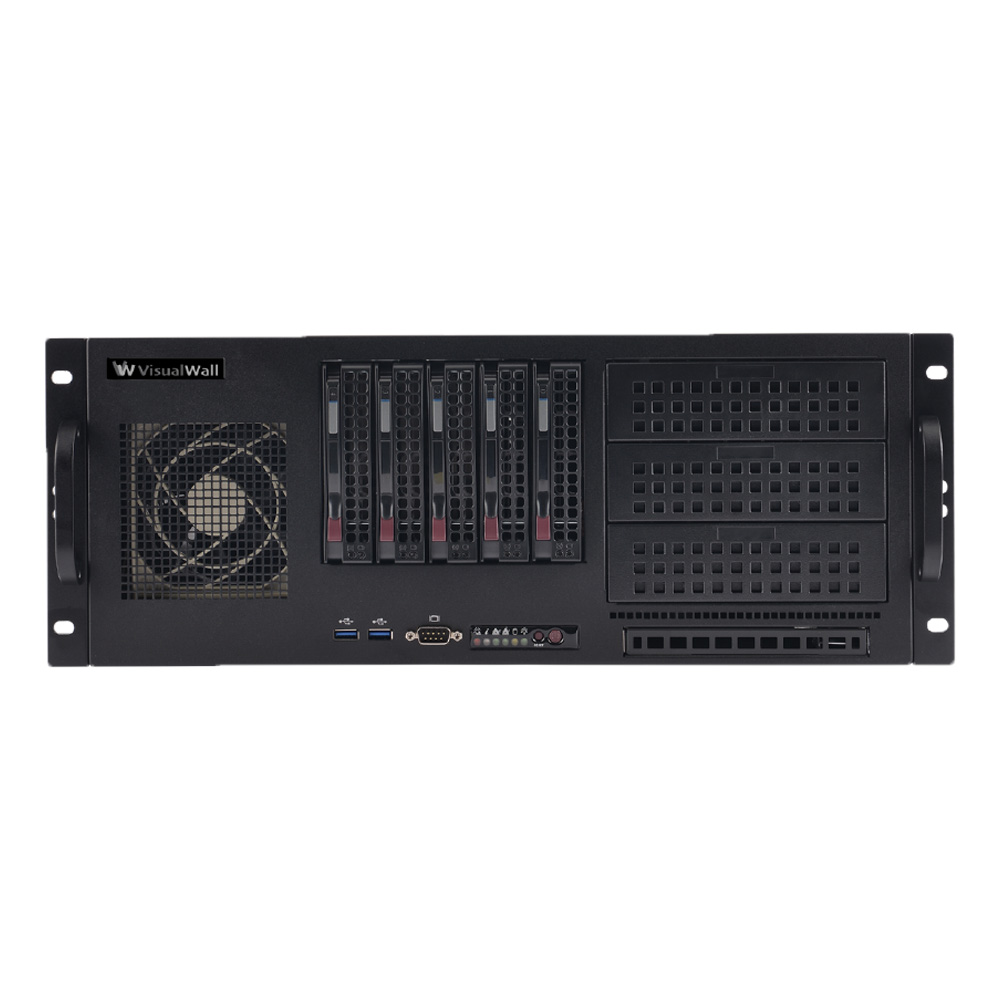

VW7X-RPSU - Image 2

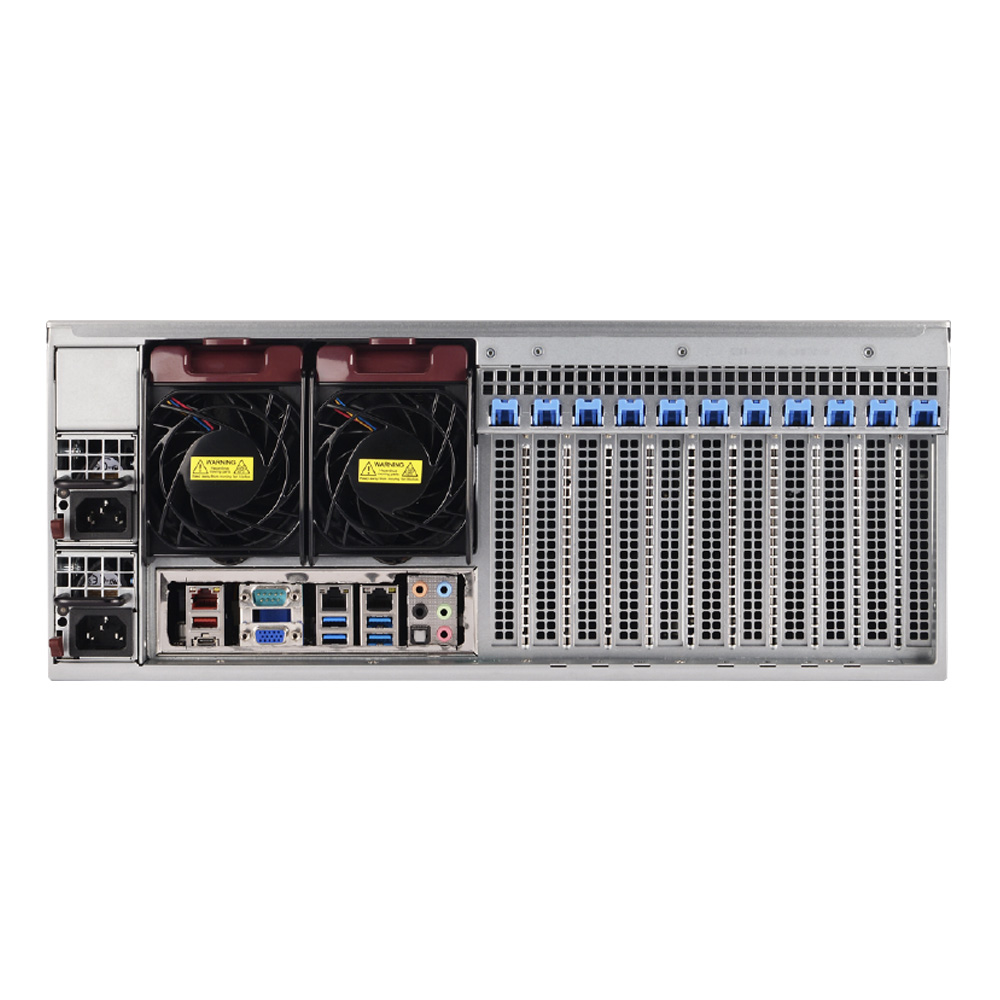

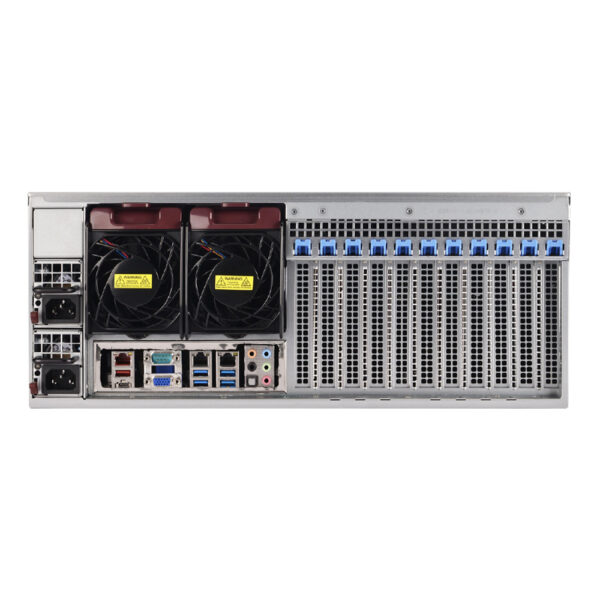

VW7X-RPSU - Image 3

VW7X-RPSU

The VW7X-RPSU is a 4U rack-mountable control room system built for 24/7 operation in mission-critical environments such as defense, logistics, and security. Powered by an Intel Xeon Silver CPU and equipped with redundant power supply and RAID-configured SSDs, it ensures high reliability and flexibility. Its PC-based architecture and multiple PCI-E slots make it ideal for integrating various sources and third-party automation systems.

Categories: , Brand:

Description

VW7X-RPSU is a control room solution which is designed for 24/7
operation. It is suitable for mission critical control rooms such as defence
applications, logistic operations, security control and various other control
and command installations. Thanks to its PC based structure it is very
flexible for different type of sources and displays.

• Intel Xeon Silver Processor 3.2 GHz CPU.
• Dual Ethernet Port.
• 2x 240GB SSD with RAID configuration.
• 4 PCI-E 3.0 x16, 3 PCI-E 3.0 x8 (in x16 slot) slots system backplane.
• Supports third party automation control.
• 800W Redundant power supply.
• 4U rack mountable size.

Hardware

CPU: Intel Xeon Silver Processor 3.2 GHz
Memory : 32 GB RAM
Disk Storage :2x 240 GB SSD RAID
Network: 1 RJ45 Gigabit Ethernet LAN ports
Network : 1 RJ45 10GBase-T ports
System backplane: 4 PCI-E 3.0 x16
System backplane: 3 PCI-E 3.0 x8 (in x16 slot)
Operating System: 2Windows 10 PRO 64 bit
USB :2 USB 2.0 port (front panel)
USB :4 USB 3.1 Gen1 port (rear panel)
USB :2 USB 3.1 Gen2 port (rear panel 1 type C; 1 type A)
Audio : MIC In/Line In ; Line Out/ SPDIF Out

Outputs
Graphics card :4ch Graphic cards
Graphics card :Max resolution: 3840 x 2160 60Hz 4:4:4
Graphics card :Up to 96 HD displays (depends on requested physical inputs)

Inputs
Captura Card Options :Dual HDMI 2.0 4K 60Hz 4:4:4 Capture CardOut
Captura Card Options :Quad 3G-SDI Capture Card
Captura Card Options :Quad HDMI Capture Card
Captura Card Options :Hexa CVBS Capture Card
Captura Card Options : Decoding Card Up to 1x4096x2160 @ 60fps / 3x4096x2160p@ 30fps or 6x1920x1080p @ 60fps / 12 x 1080p @ 30 fps or 10 x 1080i @ 30fps / 50+ D1 @ 30 fps

General specifications
Dimensions: 4U 19" Rackmount
Weight: 20kg - 25kg
Power supply :800W 100-240VAC Redundant Power Supply
Temperature: 0°C - 35°C
Humidity: %10-%90 non-condensing
Certification :CE

.
