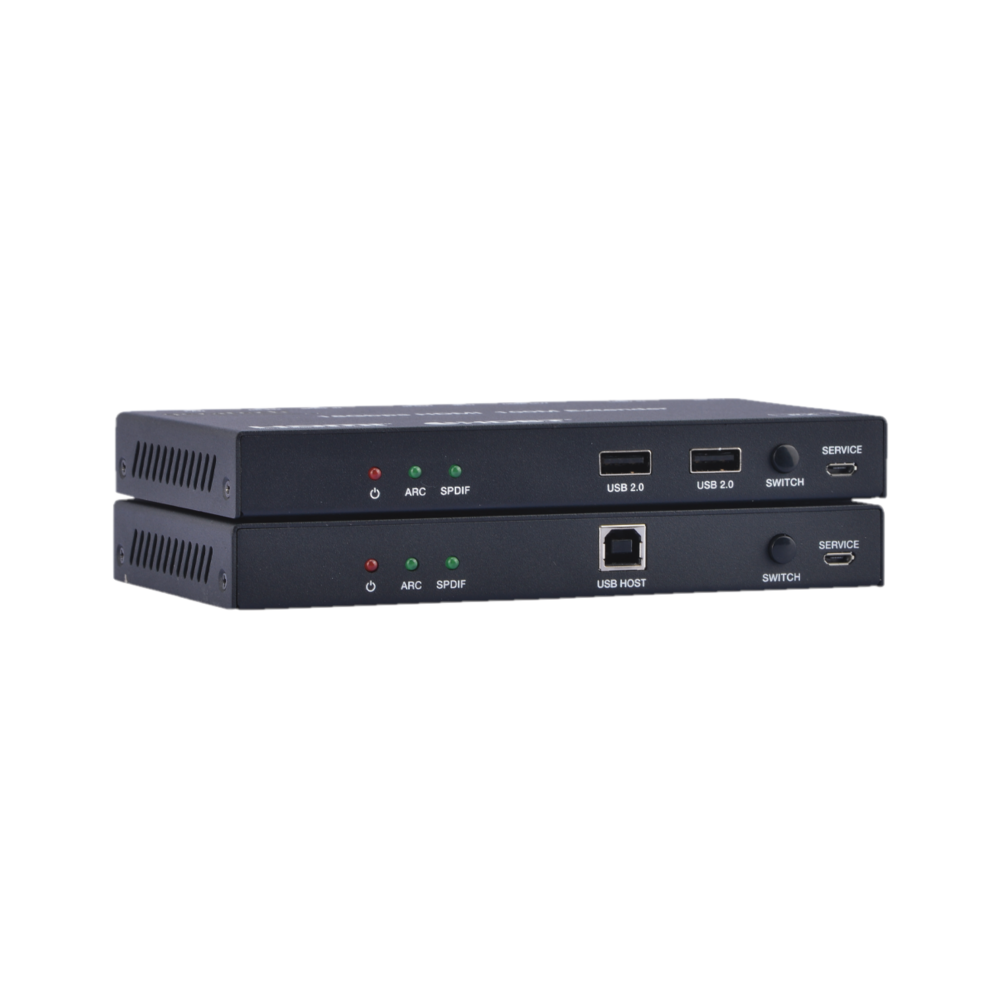

EGE-UHD-HDB-KVM

This 18Gbps HDMI Extender transmits 4K\@60Hz video, audio, RS-232, IR, internet, and USB KVM up to 100 meters over a single CAT6a/7 cable. It supports ARC, PoC, and local audio extraction for flexible and reliable integration.

Categories: , Brand:

Description

This 18Gbps HDMI Extender can extend high definition video / audio signal, RS-232, bi-directional IR and internet signal, at the distance of up to 328ft / 100 meters between transmitter and receiver via a single CAT6a/7 cable and support resolution up to 4K2K@60Hz 4:4:4. The Transmitter supports ARC function and local audio extract. In addition, the extender is equipped with bi-directional IR pass-through which allows for source and display control. It also supports USB KVM and PoC function. The extender offers the most convenient solution for HDMI extension via a single CAT cable with long distance capability, and is the perfect solution for any application.

  • HDBaseT™ 2.0 over a single CAT5e/6/7 cable up to 330ft/100m distance
  • 5-Play™ convergence: HD video & audio, IR/RS-232/LAN/PoC
  • Simple plug-and-play for easy connection – no set up/drivers/software required
  • Supports High Definition resolutions up to 4K2K@60Hz(4:2:0), 4K2K@30Hz, 1080P@120Hz, and 1080P 3D@60Hz
  • Supports up to 7.1 channels of High Definition audio (LPCM, Dolby TrueHD, and DTS-HD Master Audio)
  • Supports Bi-directional wideband IR control, Ethernet and external digital audio capabilities
  • Supports Bi-directional 24V PoC

.

.

.
