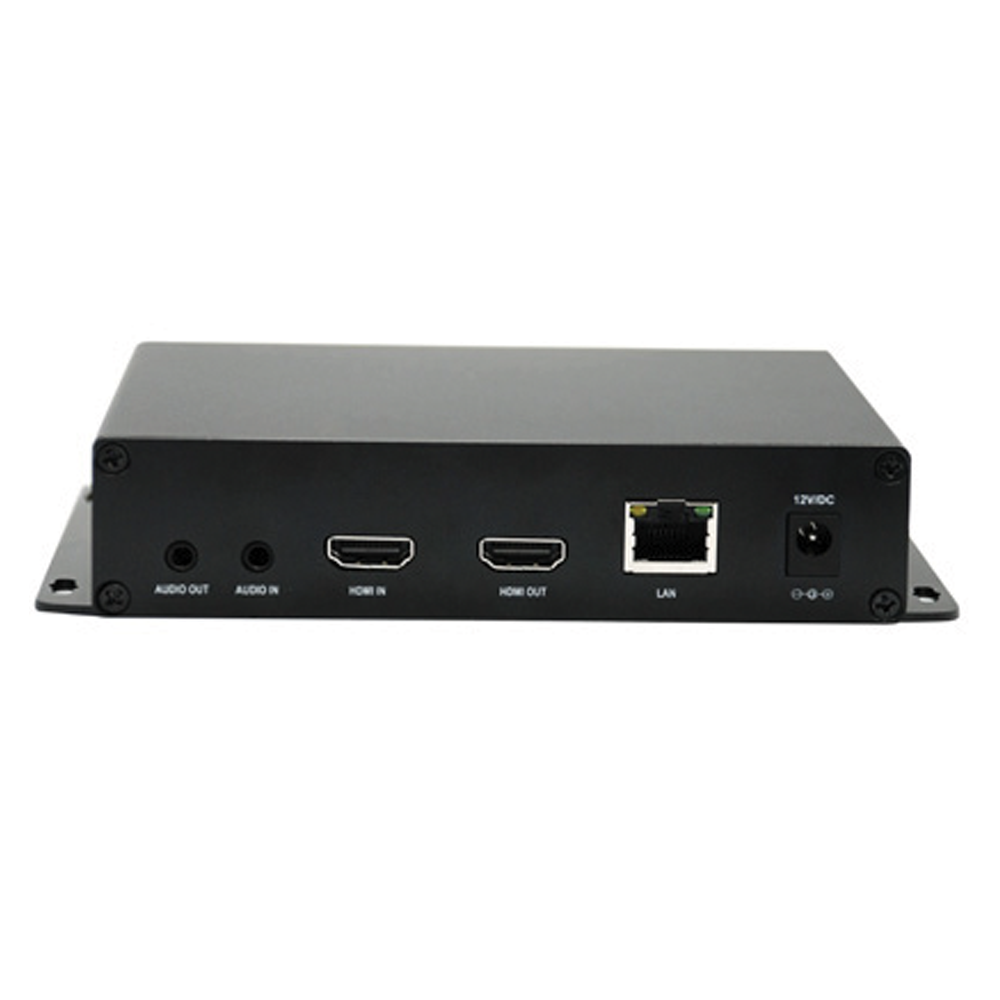

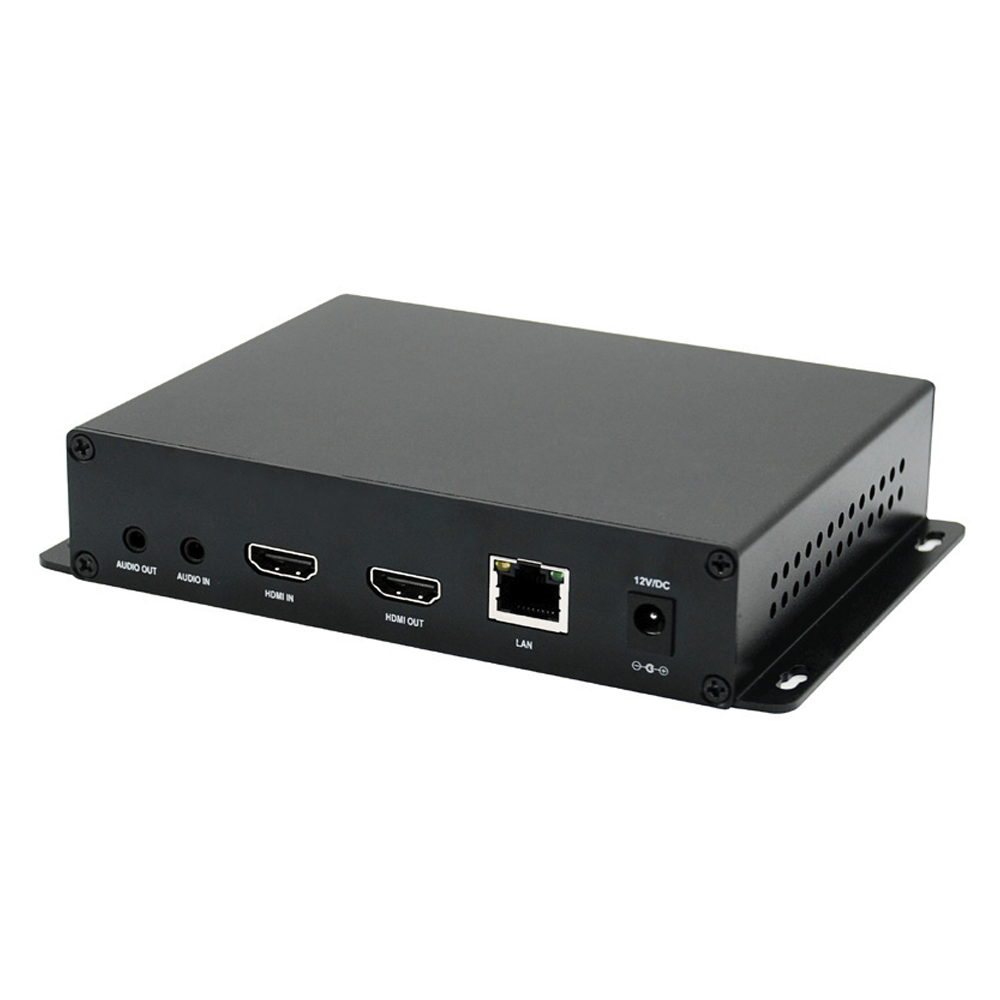

EGE-HDMIP-901 is a professional hardware video and audio encoder. Which designed to meet the HD/1080P@60 Video transmission applications. It supports H.265 (HEVC)/H.264 high-performance encoding. Also, it supports the most protocols including HTTP/SRT/RTMP/RTMPS/HLS/ UDP/RTSP/Onvif, etc. It’s high integration and cost-effective design make this device widely used in the variety of field such as CATV digital head-end, hotel IPTV system, live streaming broadcast, streaming media server etc. Also, the encoder works with the online live broadcast platform, such as YouTube, Ustream, Twitter, WOWZA, Facebook Live, etc.
- Support H.265/H.264 /MJPEG encoding
- Support 1XHDMI Input and loop-out
- Support Digital audio/Analog audio loop out
- Support HTTP/HTTPS/RTSP/RTMP/RTMPS/SRT/UDP/RTP/FLS/FLV/Onvif protocol
- Support output video stream format: TS/VES/AES stream, etc.
- LCD display device name, IP address, resolution and working status
- Support up to 1080P@60 resolution input and output
- Support 4 channels streams output at the same time
- Support audio encoding without the video input
- Support MP3/AAC/G.711 Advanced Audio Coding format quality
- Support HDCP 1.4
- 1000M network interface uses full duplex mode, LAN and WAN transmission
- Support POE power supply(optional)
- Support SDK, secondary development
- Support network remote management and upgrade
- Support to be packed with 1U and 3U Rack(1~16channels video input)

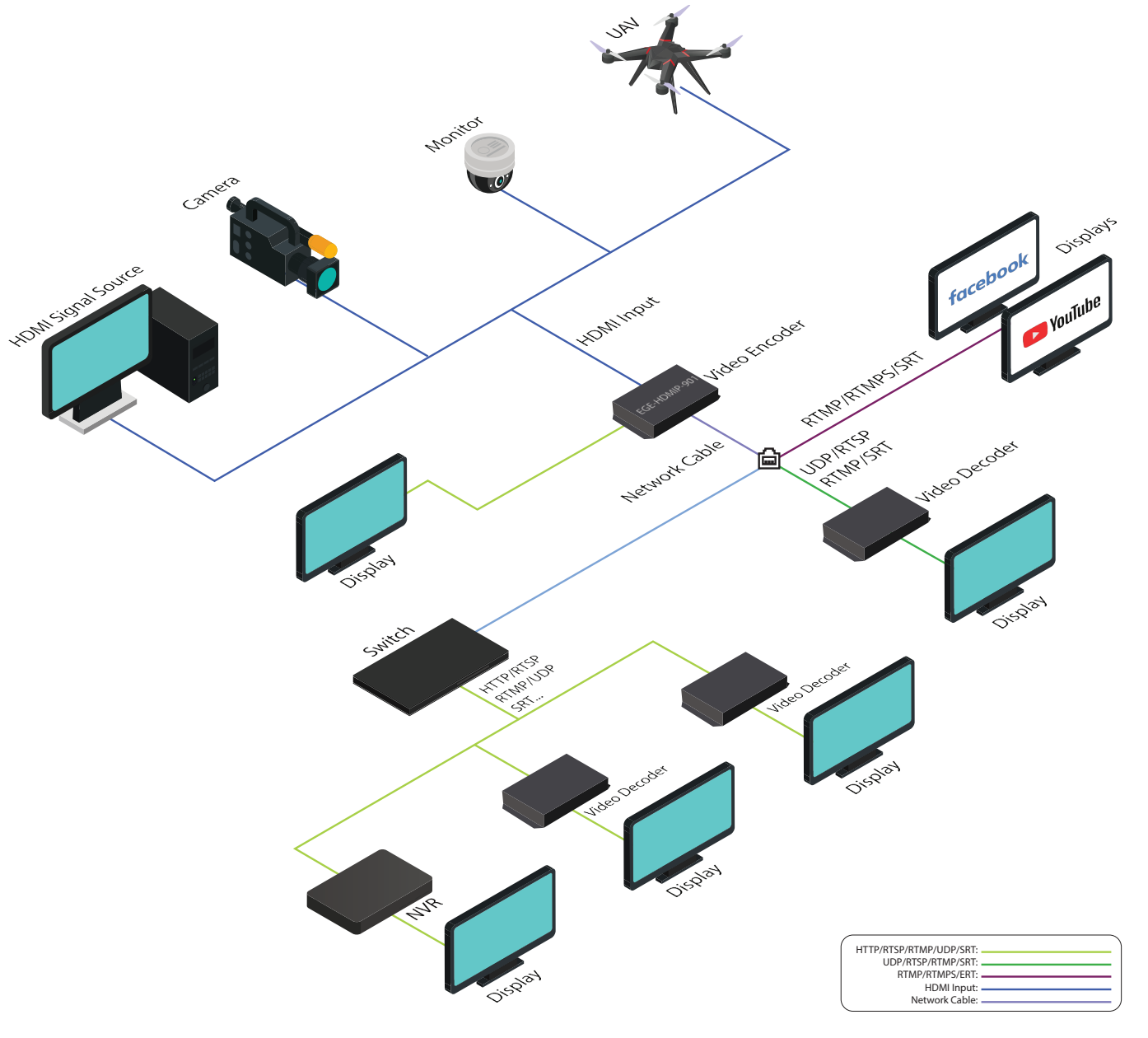

- Applied in Live broadcast, IPTV system, elevator advertising player, online courses, broadcast meeting
- 7*24h Working
