EGE-HDMIP-404
EGE-HDMIP-404 - Image 2

EGE-HDMIP-404

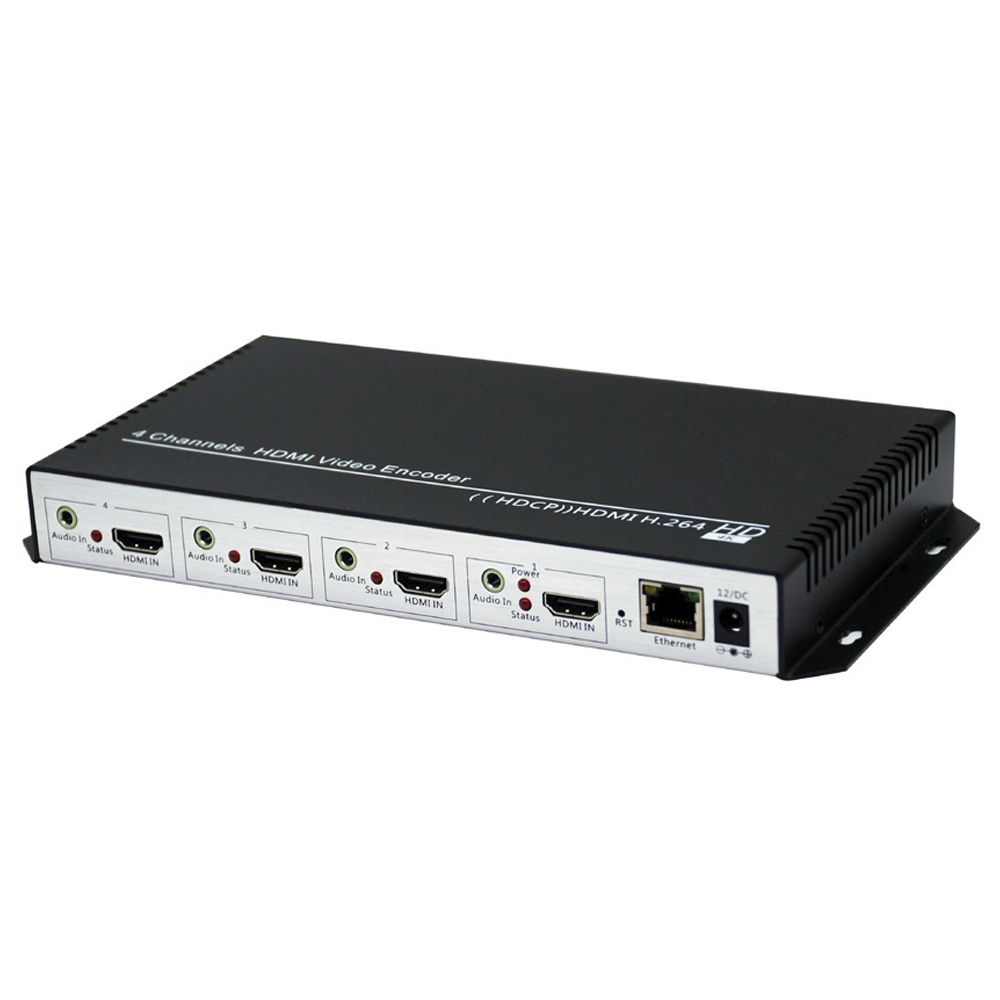

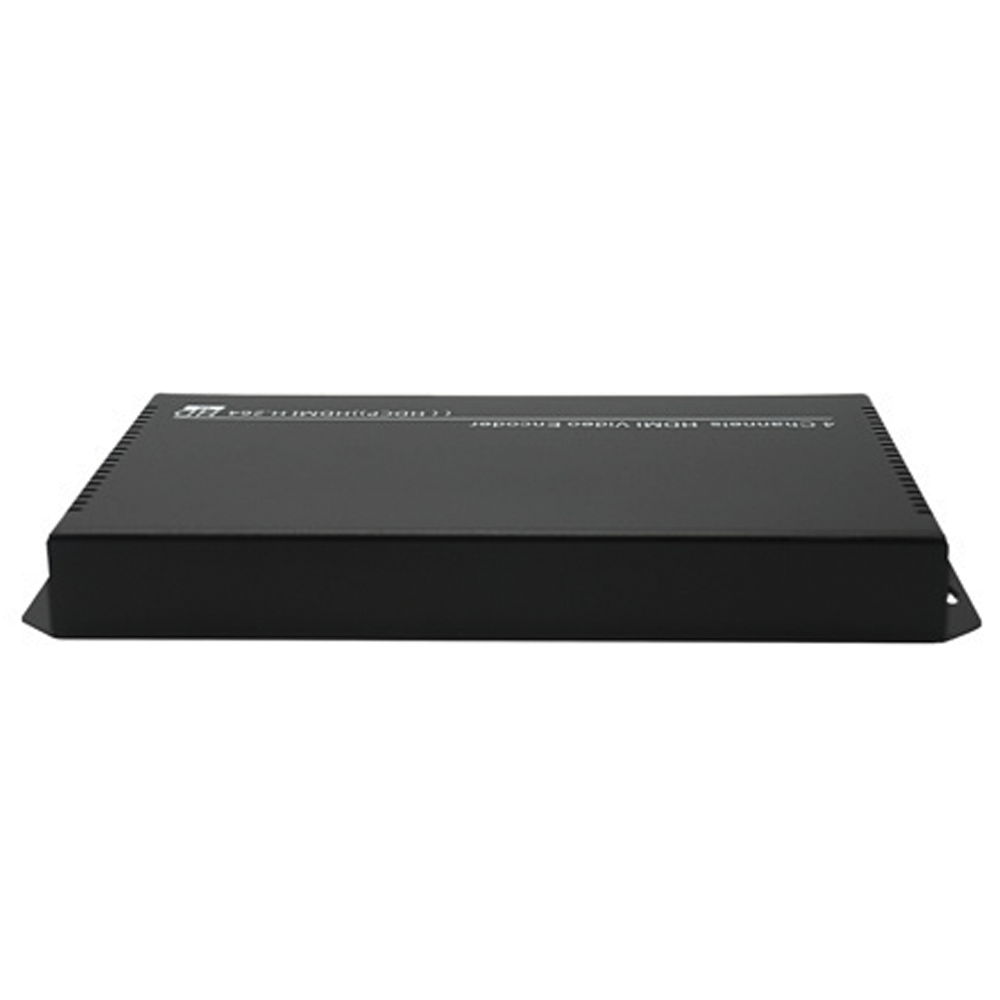

The EGE-HDMIP-404 is a 4-channel professional HDMI video and audio encoder supporting 4K@30Hz and H.264 encoding. It is compatible with multiple streaming protocols including RTMP, RTMPS, HLS, UDP, RTSP, and Onvif. Ideal for IPTV systems, CATV head-ends, and live streaming, it integrates seamlessly with platforms like YouTube, Facebook Live, and WOWZA.

Categories: , Brand:

Description

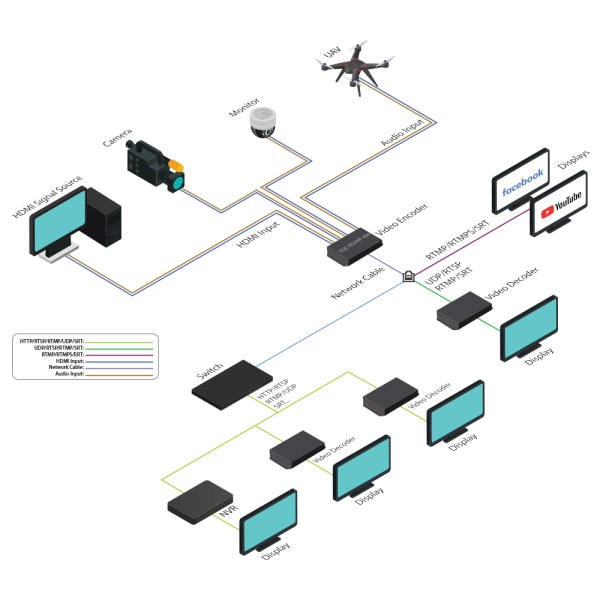

EGE-HDMIP-404 is a professional hardware video and audio encoder. Which designed to meet the 4CH 4K@30HZ HDMI Video transmission applications.It supports H.264 high-performance encoding. Also, it supports the most protocols including HTTP/RTMP/RTMPS/HLS/ UDP/RTSP/Onvif, etc. It’s high integration and cost-effective design make this device widely used in the variety of field such as CATV digital head-end, hotel IPTV system, live streaming broadcast, streaming media server etc. Also, the encoder works with the online live broadcast platform, such as YouTube, Ustream, Twitter, WOWZA, Facebook Live, etc.

  • Support H.264/MPEG-4 encoding
  • Support 4XHDMI Input and audio input
  • Support HTTP/HTTPS/RTSP/RTMP/RTMPS/UDP/RTP/FLS/FLV/Onvif protocol
  • Support output video stream format: TS/VES/AES stream, etc.
  • Support up to 4 channels 4K@30Hz resolution input and output
  • Support up to 16 channels streams output at the same time
  • Support MP3/AAC/G.711 Advanced Audio Coding format quality
  • Support HDMI1.4 and HDCP 1.4
  • 1000M network interface uses full duplex mode, LAN and WAN transmission
  • Support SDK, secondary development
  • Support network remote management and upgrade
  • Applied in Live broadcast, IPTV system, elevator advertising player, online courses, broadcast meeting
  • 7*24h Working
  • 1 Receiver
  • 1 Transmitter Usb cable/Power adapto
